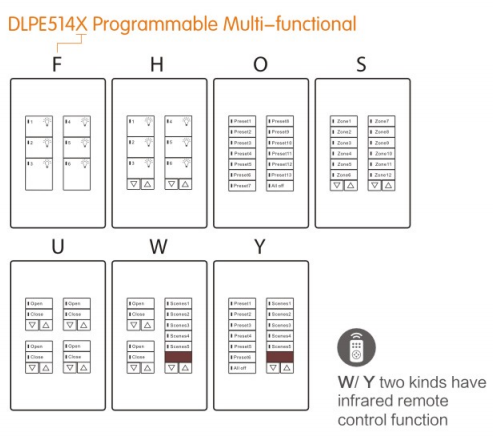

1-14 programmable functional buttons, the button size could be changeable, give choice of 1-3 key

All the function could be programmed set by the E-LIGHTING Config Tools, realize turn on, turn off, dimmable, event, scene, or other special technology.

Centralized control light, curtain, background music, projector, AV, HVAC, and other equipment

Has infrared remote control function, could work in with E-LIGHTING remote controller or third party infrared remote controller

Could work under DMX, MODBUS, or customized protocol type, is compatible with the third party

Could set automatically key lock and password unlock function

Could carve words on the button surface, such as Chinese, number or English and other type

DC10-16V 40MA power supplied by E-LIGHTING network

1 E-LIGHTING NMP (RS485) communication port

Could be edited by E-LIGHTING Contig Tools V1.0 or above

Ta: -20→+60℃

Standard 120 bottom box fix, 120x75x30mm
